Tamatha Barbeau, Ph.D.

Professor of Biology

Francis Marion University

Practice Bird Topography

This page is just for help in learning the different body parts and feathers of birds.
Use your cursor to scroll over each image to learn what each part is called.

Here is a list of common topographical terms for parts of the bird body and wings:
Head Body Wings Feathers
Crest Nape Primaries
Crown Back Secondaries
Forehead Rump Tertiaries
Supercilium Breast Greater primary coverts
Lores Belly Greater secondary coverts
Auriculars Side Median coverts
Orbital eye ring Flank Marginal coverts
Eyeline Upper tail coverts Alula
Upper mandible & Lower Mandible Undertail coverts Scapulars
Malar Tail
Chin
Throat


Topology of the head.
superciliumUpper mandibleLower mandibleChinThroatLoresMalarAuricularsEye lineOrbital ring feathers around eye)SuperciliumCrown stripeMedian crown stripeForeheadNapeChinLoreseye lineSupercilum (has supercilary stripe)Median crown stripeCrownThroatMalarChestBellyRumpNapeUpper tail covertsTailPrimaries covertsforeheadbackauriculars

Topology of the body. Click HERE for the corresponding YouTube video describing bird topography for the image below.
Median crown (stripe)crown (this bird has a crown stripe)supercilum (this bird has a supercilium stripe)loreseyelineauricularsnapechinthroatmalar (this bird has 2 malar strips)foreheadupper mandiblelower mandibleside of neckbellybreastthighsthighstailundertail covertsupper tail covertsrumpbackprimaries (flight feathers)coverts (this image doesn't delineate greater, lesser coverts)orbital eye ringscapularsflankside

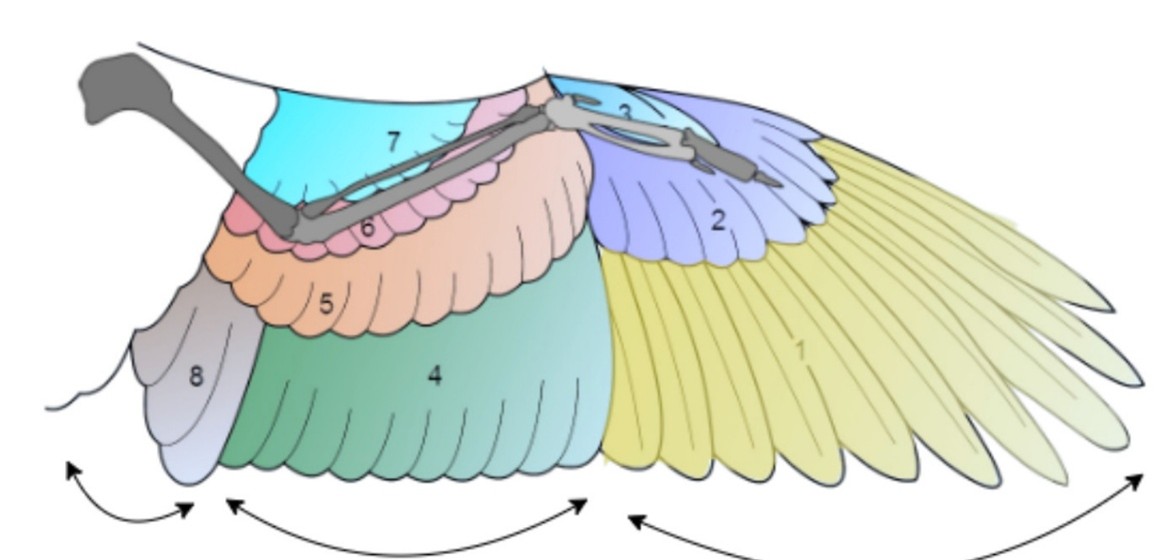

primaries (attached to carpo-metacarpal bones)secondaries (attached to ulna)tertialshumerus (bone)ulna (bone)radius (bone)greater primary covertsgreater secondary covertsmiddle covertsalula (attached to digit 1)marginal covertscarpometacarpusLesser coverts

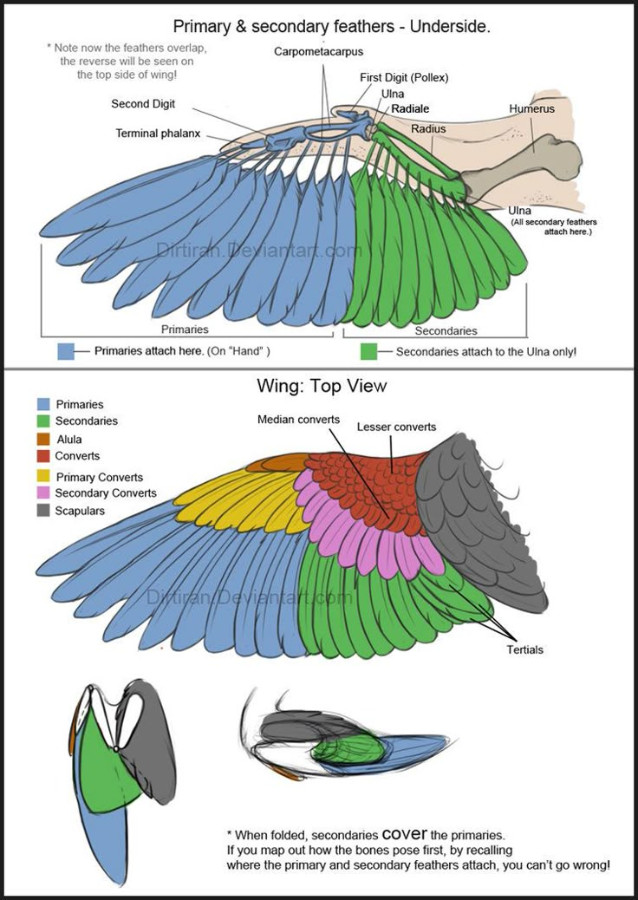

Additional images:
